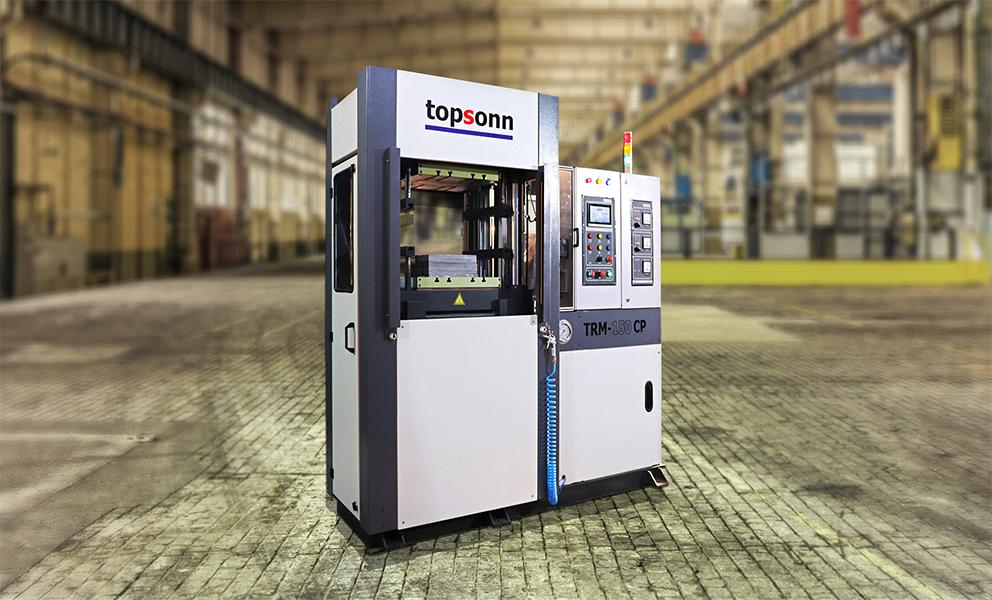

1. Single Station - Compression Molding Machinery
-
TRM - 75 CP
|
Clamping force (Ton) |
750KN/75T |
|
Daylinght Distance (mm) |
400mm |
| Clamping Unit |
Main RAM Stroke (mm) |
350mm |
|
Heating platen size (mm) |
360 x 360mm |
|
Heating load (Kw) |
6 |
|
Oil tank capacity (Ltr) |
180 |
| Hydraulic unit |
Working pressure (Bar) |
210 |
|
Motor rating (Kw) |
5 |
|
Top & bot ejector |
1.5T x 200mm |
| Optional features |
Outside central ejector |
1.5T |
|
Outside platen slide |
70% |
-
TRM - 100 CP
|
Clamping force (Ton) |
1000KN/100T |
|
Daylinght Distance (mm) |
450mm |
| Clamping Unit |
Main RAM Stroke (mm) |
400mm |
|
Heating platen size (mm) |
400 x 420mm |
|
Heating load (Kw) |
6 |
|
Oil tank capacity (Ltr) |
250 |
| Hydraulic unit |
Working pressure (Bar) |
210 |
|
Motor rating (Kw) |
5 |
|
Top & bot ejector |
2.5T x 200mm |
| Optional features |
Outside central ejector |
2T |
|
Outside platen slide |
70% |
-
TRM - 150 CP
|
Clamping force (Ton) |
1500KN/75T |
|
Daylinght Distance (mm) |
500mm |
| Clamping Unit |
Main RAM Stroke (mm) |
400mm |
|
Heating platen size (mm) |
500 x 500mm |
|
Heating load (Kw) |
9 |
|
Oil tank capacity (Ltr) |
300 |
| Hydraulic unit |
Working pressure (Bar) |
210 |
|
Motor rating (Kw) |
7.5 |
|
Top & bot ejector |
4T x 200mm |
| Optional features |
Outside central ejector |
2T |
|
Outside platen slide |
70% |
-
TRM - 200 CP
|
Clamping force (Ton) |
2000KN/200T |
|
Daylinght Distance (mm) |
500mm |
| Clamping Unit |
Main RAM Stroke (mm) |
450mm |
|
Heating platen size (mm) |
600 x 600mm |
|
Heating load (Kw) |
12 |
|
Oil tank capacity (Ltr) |
350 |
| Hydraulic unit |
Working pressure (Bar) |
210 |
|
Motor rating (Kw) |
10 |
|
Top & bot ejector |
4T x 200mm |
| Optional features |
Outside central ejector |
2T |
|
Outside platen slide |
70% |
-
TRM - 300 CP
|
Clamping force (Ton) |
3000KN/300T |
|
Daylinght Distance (mm) |
600mm |
| Clamping Unit |
Main RAM Stroke (mm) |
450mm |
|
Heating platen size (mm) |
700 x 700mm |
|
Heating load (Kw) |
14 |
|
Oil tank capacity (Ltr) |
400 |
| Hydraulic unit |
Working pressure (Bar) |
210 |
|
Motor rating (Kw) |
15 |
|
Top & bot ejector |
5T x 250mm |
| Optional features |
Outside central ejector |
2T |
|
Outside platen slide |
70% |
-
TRM - 400 CP
|
Clamping force (Ton) |
4000KN/400T |
|
Daylinght Distance (mm) |
700mm |
| Clamping Unit |
Main RAM Stroke (mm) |
500mm |
|
Heating platen size (mm) |
800 x 800mm |
|
Heating load (Kw) |
14 |
|
Oil tank capacity (Ltr) |
400 |
| Hydraulic unit |
Working pressure (Bar) |
210 |
|
Motor rating (Kw) |
15 |
|
Top & bot ejector |
5T x 300mm |
| Optional features |
Outside central ejector |
2T |
|
Outside platen slide |
70% |

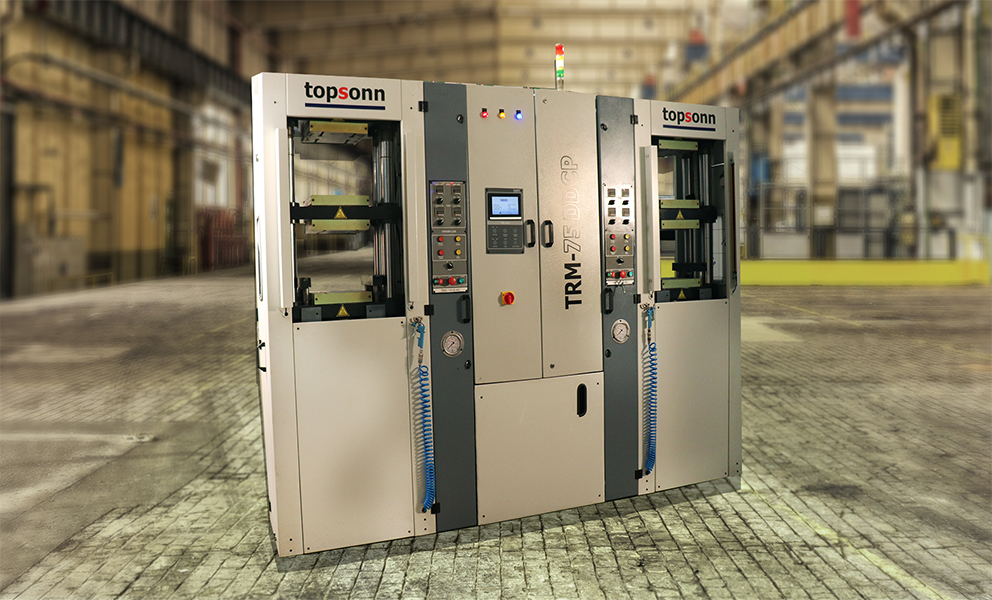

2. Twin Station - Compression Molding Machinery
-
TRM - 75 DCP
|
Clamping force (Ton) |
750KN/75T |
|
Daylinght Distance (mm) |
300mm |
| Clamping Unit |
Main RAM Stroke (mm) |
250mm |
|
Heating platen size (mm) |
360 x 360mm |
|
Heating load (Kw) X 2 |
6 X 2 |
|
Oil tank capacity (Ltr) |
350 |
| Hydraulic unit |
Working pressure (Bar) |
210 |
|
Motor rating (Kw) |
5 X 2 |
|
Top & bot ejector |
1.5T x 200mm |
| Optional features |
Outside central ejector |
1.5T |
|
Outside platen slide |
70% |
-
TRM - 100 DCP
|
Clamping force (Ton) |
1000KN/100T |
|
Daylinght Distance (mm) |
300mm |
| Clamping Unit |
Main RAM Stroke (mm) |
250mm |
|
Heating platen size (mm) |
400 x 420mm |
|
Heating load (Kw) X 2 |
6 X 2 |
|
Oil tank capacity (Ltr) |
400 |
| Hydraulic unit |
Working pressure (Bar) |
210 |
|
Motor rating (Kw) |
5 X 2 |
|
Top & bot ejector |
2.5T x 200mm |
| Optional features |
Outside central ejector |
2T |
|
Outside platen slide |
70% |
-
TRM - 150 DCP
|
Clamping force (Ton) |
1500KN/150T |
|
Daylinght Distance (mm) |
350mm |
| Clamping Unit |
Main RAM Stroke (mm) |
300mm |
|
Heating platen size (mm) |
500 x 500mm |
|
Heating load (Kw) X 2 |
9 X 2 |
|
Oil tank capacity (Ltr) |
400 |
| Hydraulic unit |
Working pressure (Bar) |
210 |
|
Motor rating (Kw) |
7.5 X 2 |
|
Top & bot ejector |
4T x 200mm |
| Optional features |
Outside central ejector |
2T |
|
Outside platen slide |
70% |
-
TRM - 200 DCP
|
Clamping force (Ton) |
2000KN/200T |
|
Daylinght Distance (mm) |
350mm |
| Clamping Unit |
Main RAM Stroke (mm) |
300mm |
|
Heating platen size (mm) |
600 x 600mm |
|
Heating load (Kw) X 2 |
12 X 2 |
|
Oil tank capacity (Ltr) |
500 |
| Hydraulic unit |
Working pressure (Bar) |
210 |
|
Motor rating (Kw) |
10 X 2 |
|
Top & bot ejector |
4T x 200mm |
| Optional features |
Outside central ejector |
2T |
|
Outside platen slide |
70% |
-
TRM - 300 DCP
|
Clamping force (Ton) |
3000KN/300T |
|
Daylinght Distance (mm) |
400mm |
| Clamping Unit |
Main RAM Stroke (mm) |
300mm |
|
Heating platen size (mm) |
700 x 700mm |
|
Heating load (Kw) X 2 |
14 X 2 |
|
Oil tank capacity (Ltr) |
500 |
| Hydraulic unit |
Working pressure (Bar) |
210 |
|
Motor rating (Kw) |
15 X 2 |
|
Top & bot ejector |
5T x 250mm |
| Optional features |
Outside central ejector |
2T |
|
Outside platen slide |
70% |
-
TRM - 400 VCP
|
Clamping force (Ton) |
4000KN/400T |
|
Daylinght Distance (mm) |
500mm |
| Clamping Unit |
Main RAM Stroke (mm) |
350mm |
|
Heating platen size (mm) |
800 x 800mm |
|
Heating load (Kw) X 2 |
14 X 2 |
|
Oil tank capacity (Ltr) |
600 |
| Hydraulic unit |
Working pressure (Bar) |
210 |
|
Motor rating (Kw) |
15 X 2 |
|
Top & bot ejector |
5T x 300mm |
| Optional features |
Outside central ejector |
2T |
|
Outside platen slide |
70% |
