Liquid Silicon Molding
Machines
Liquid Silicon Molding
Machines
Liquid Silicon Molding Machinery
-
TRM - LSM - 100 VCP
|
Clamping force (Ton) |
100KN / 100T |
|
Daylinght Distance (mm) |
1500 |
| Clamping Unit |
Main RAM Stroke (mm) |
1000 |
|
Heating platen size (mm) |
1000 x 1000 |
|
Heating load (Kw) |
16 |
|
Oil tank capacity (Ltr) |
250 |
| Hydraulic unit |
Working pressure (Bar) |
210 |
|
Motor rating (Kw) |
5.5 |
|
Bottom Ejector
|
5T x 500mm |
| Optional features |
Outside Ejector |
5T X 500mm |
|
Outside platen slide |
100% |
-

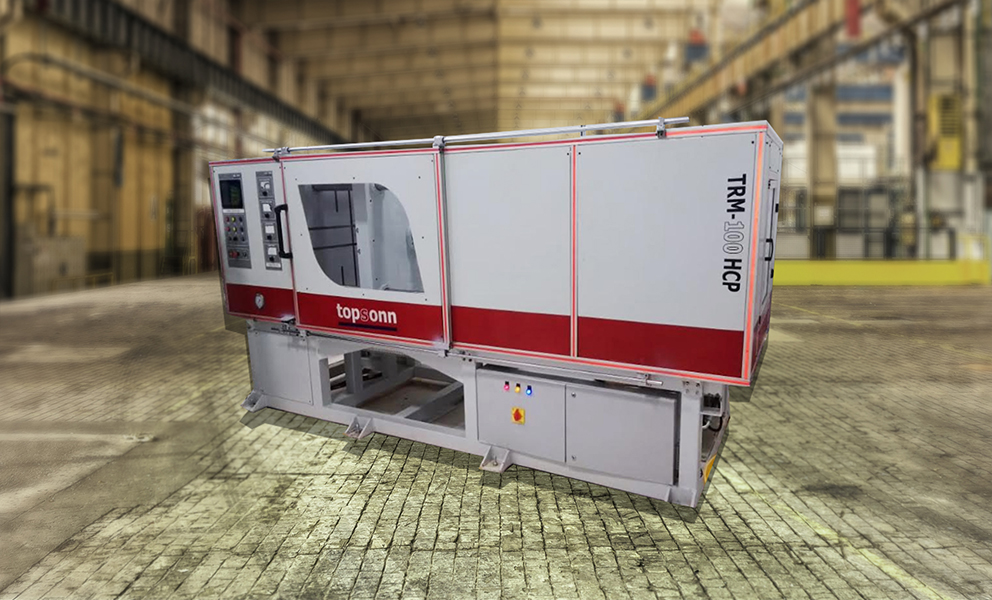

TRM - LSM - 100 HCP
|
Clamping force (Ton) |
100KN / 100T |
|
Daylinght Distance (mm) |
1500 |
| Clamping Unit |
Main RAM Stroke (mm) |
1200 |
|
Heating platen size (mm) |
1000 x 1000 |
|
Heating load (Kw) |
16 |
|
Oil tank capacity (Ltr) |
250 |
| Hydraulic unit |
Working pressure (Bar) |
210 |
|
Motor rating (Kw) |
5.5 |
|
Central Ejector
|
5T x 500mm |
| Optional features |
Outside Ejector |
NA |
|
Outside platen slide |
NA |
